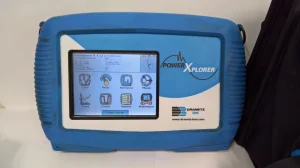

Dranetz PX5 Power Xplorer analizator (Mavowatt 70)

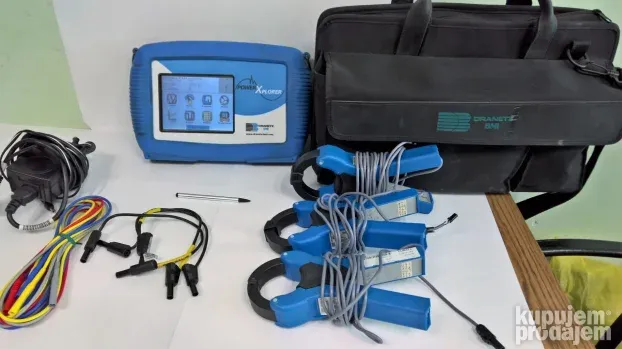

Vrhunski mrežni analizator i snimač parametara električne mreže, legendarni Dranetz PX5 Power Xplorer (Mavowatt 70, po Gossen Metrawatu). Snima tranzijente do 1us (mikrosekunde). Visok buffer za snimanje struje polaska motora ili naponskih propada (10000 perioda na 50Hz). Dolazi za Dranview softwareom PRO verzijom na odvojenom USB-u i sa memorijskom CF karticom, koja je u instrumentu.

Radim sa sličnim uređajem, tako da sam od pomoći u procesu učenja rukovanja ovom zverkom od uređaja.

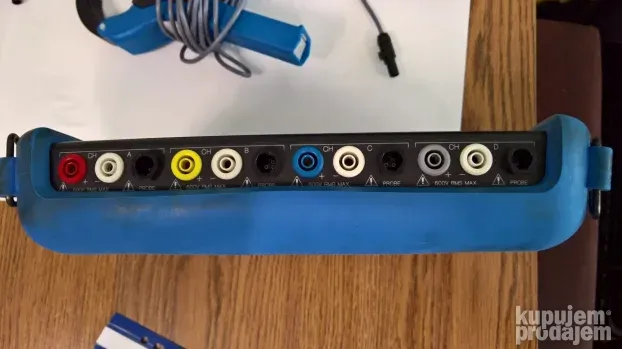

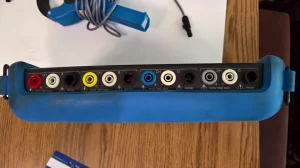

• 8 channels (4 voltage and 4 current)
• Samples at 256 samples/cycle/channel
• Independent voltage and current triggering, cross triggering

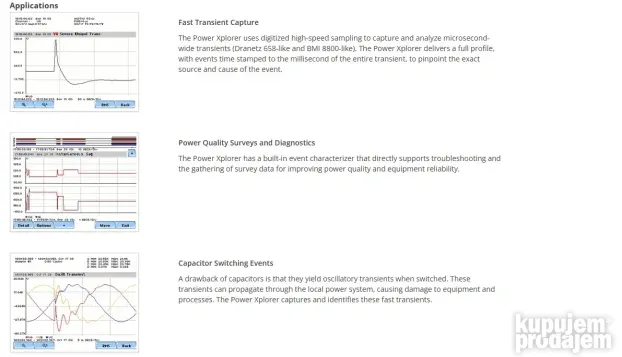

• High-speed sampling and data capture (1 microsecond/channel)

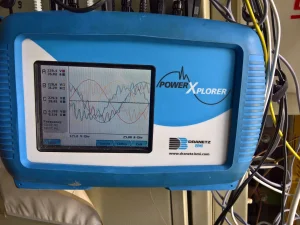

• Oscilloscope-like, high-speed transient detection
• Detailed event characterization of RMS variations and transients

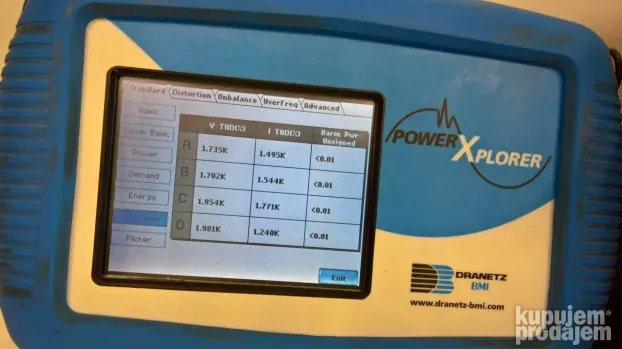

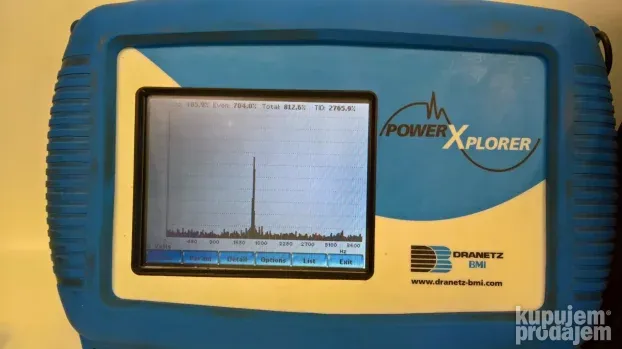

• THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
• Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
• AnswerModules® intelligent algorithms help pinpoint the source and cause of power quality problems

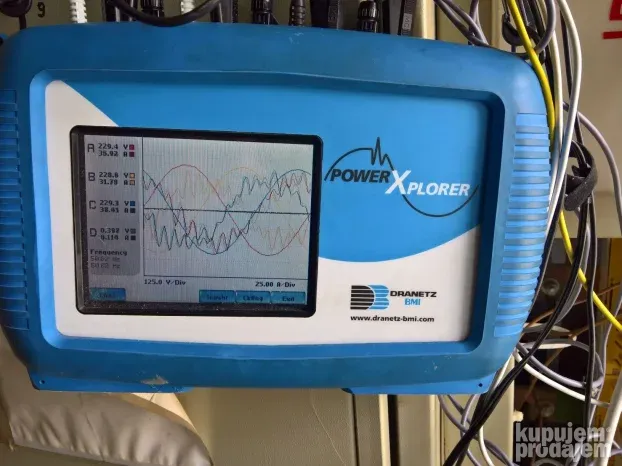

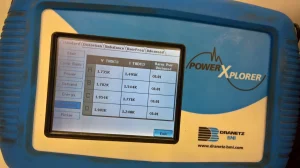

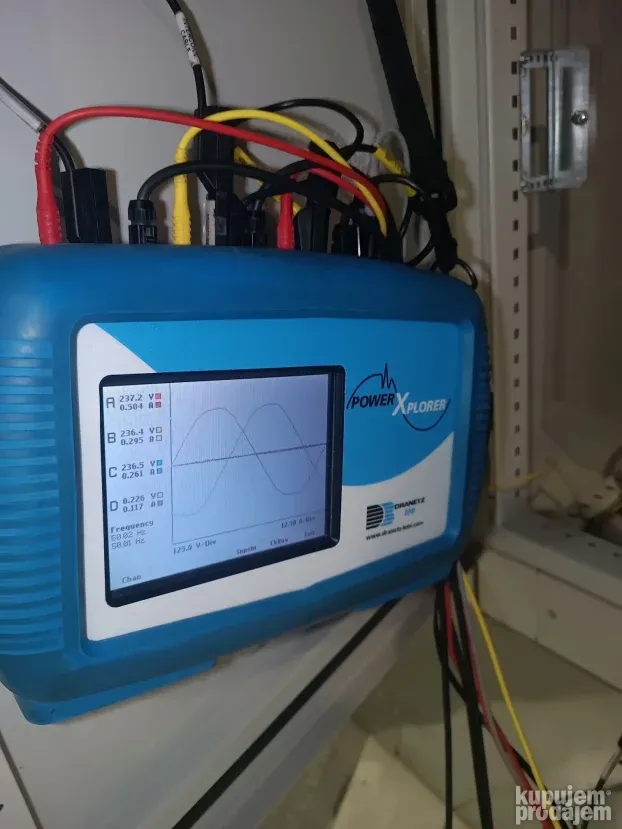

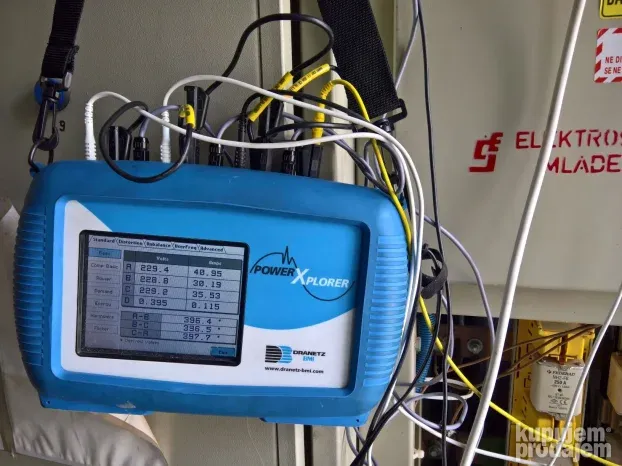

• Select from a multitude of data displays, such as phasors, waveforms, meters and harmonic spectrums, as well as recording options that include continuous monitoring, or report-by exception, and AC and DC measurements for events lasting from a microsecond to an hour

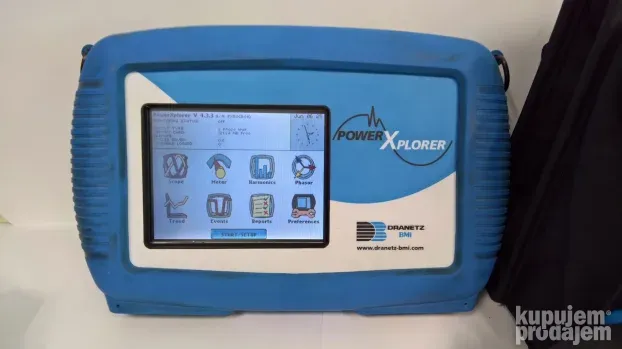

• Easy-to-navigate, color graphical user interface with annunciator "report card" that provides instant classification of events
• Designed to meet the most advanced power quality standards, including IEEE 1159, IEC 61000-4-30 Class A and EN50160

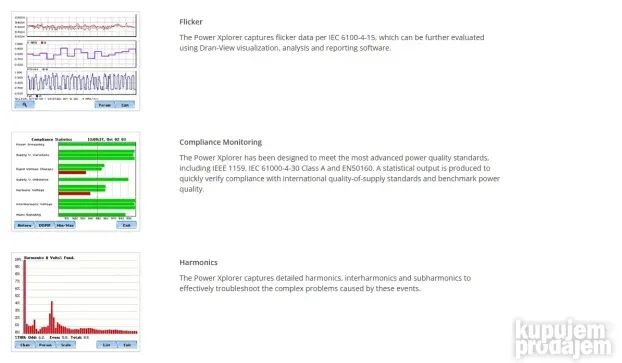

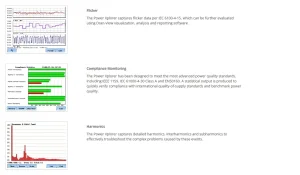

• Measures flicker according to IEC 61000-4-15
• Remote communications using RS-232, Ethernet or USB options
• Battery or AC mode
• Built-in UPS battery with external charger
• Expanded memory up to 4GB
• DRAN-VIEW enabled (Windows NT, 98, ME, 2000, XP)
