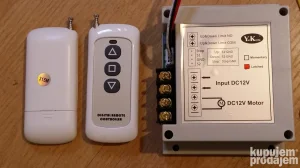

Set za bezicno otvaranje kapija i sl. 315Mhz 12VDC 40A

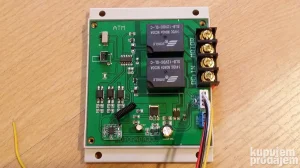

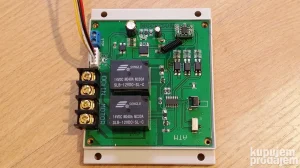

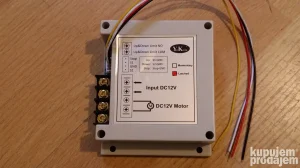

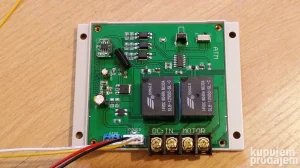

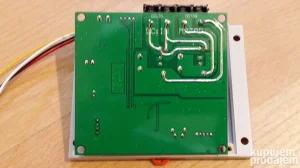

DC12V Motor Forwards Reverse Up Down Stop Controller
A: Working Voltage: DC12V
Max Load: 40A Relay have better load less than 400W
Size: 115*95*40mm
Control Type: Up Down Button change the receiver Output + - position. When motor is stop, the Output is 0V.
Encoding Type--------------- Learning Button to add Transmitter
Power off then Power ON again , the receiver is still off ,
Receiver with the Power LED indicator

Working Mode: Momentary Latched adjusted by Toggle Switches
“ Latched Mode` -----------have the 3s Delay for protection.
Momentary---------Switch turn to“ M`
Latched-------------Switch turn to ` L`

How to Wire to your External Manual Button

Forwards ---------S2 Connect GND

Reverse ----------S1 Connect GND

Stop---------------Stop Connect GND

Limited Switch use NO and COM Terminal （Limited Switch is not included )

Limited Switch Terminal Voltage ：DC9V-11V

you can use the limited switch with the working voltage

such as Sensor Switch . Proximity Switch , Photoelectric Switch or Mechanical Limit Switch

Lmited Switch Type:

The Controller use normally open type limit switch. Forwards Reverse limit are in parallel . The function like the stop button of the remote control. When reaching the obstacle it will work like you pressing the remote control stop button , if the obstacle is removed. The motor will not continue to move forward, you need to press the remote control down button or the up button to restart.

Limit connection:

The Up Limit Switch NO and the Down Limit Switch NO both are wire to our receiver NO Terminal

The Up Limit Switch COM and the Down Limit Switch COM both are wire to our receiver COM Terminal
