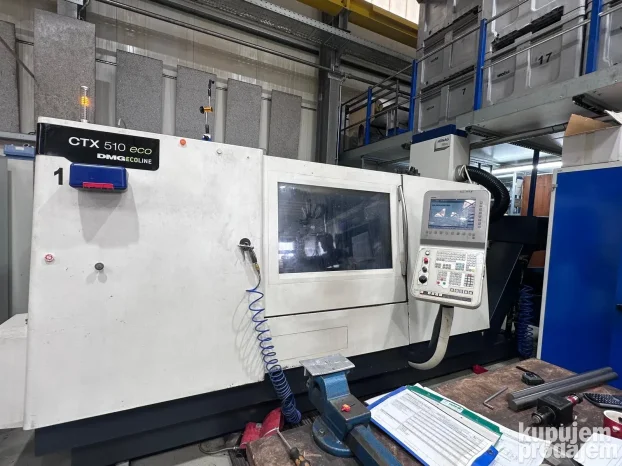

DMG CTX 510eco CNC strug sa C-osom i gonjenim alatima

DMG CTX 510eco CNC strug sa C-osom i gonjenim alatima

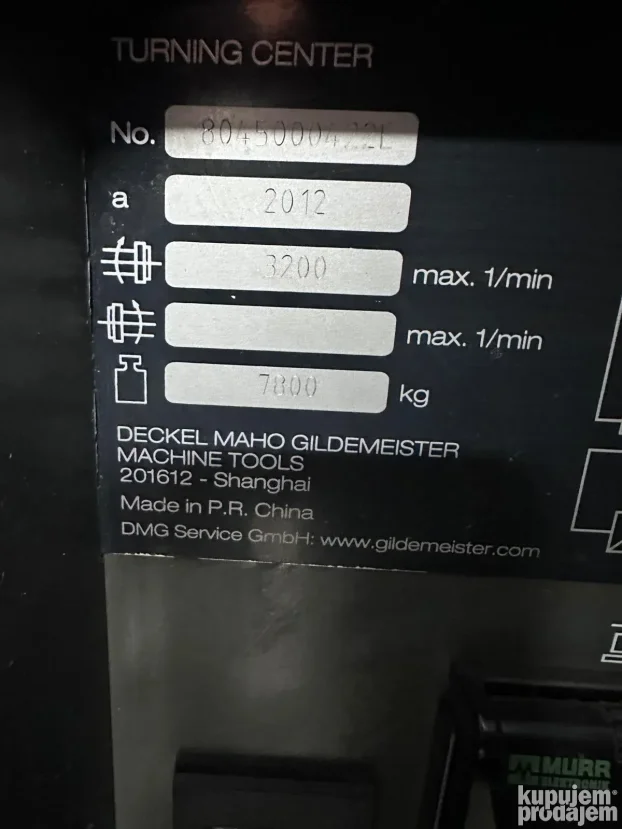

Year: 2012

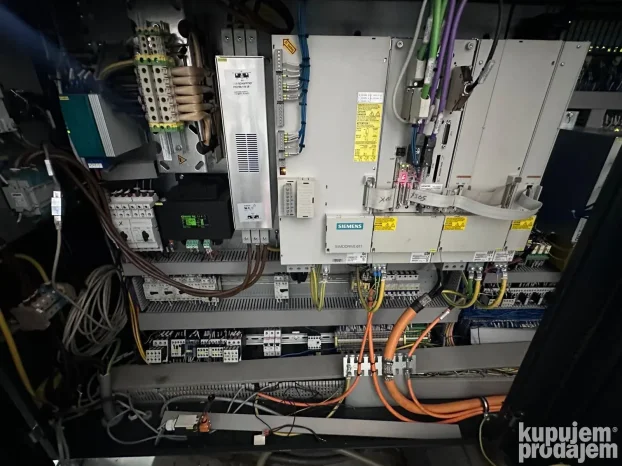

CNC controller: SINUMERIK 810D with ShopTurn
X-axis travel mm: 300
Z-axis travel mm: 1.050
Turning length mm: 1.050
Max. turning diameter mm: ø 465
Swing over bed mm: ø 680
Swing over cross-slide mm: 465
Bar work capacity mm: ø90

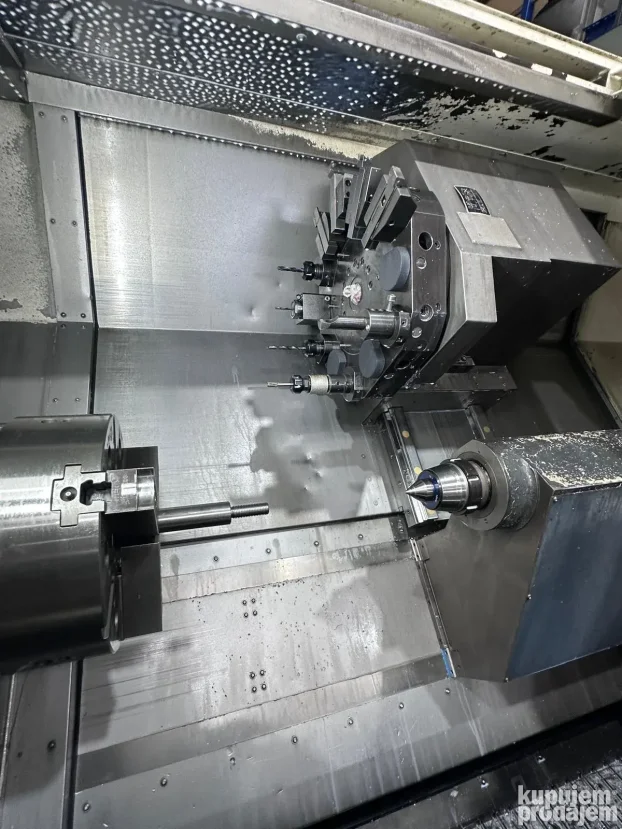

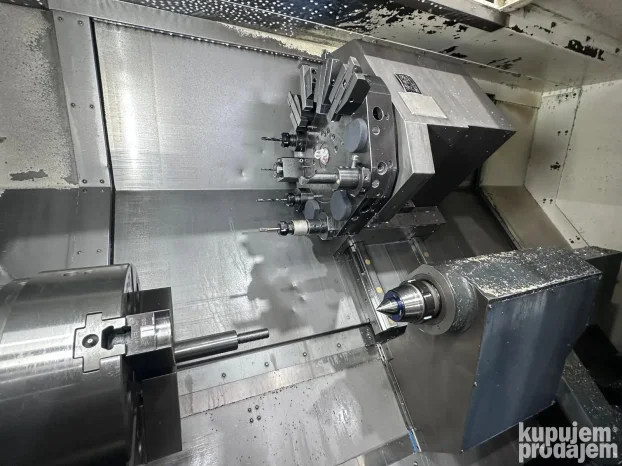

Turret head capacity . : 12 positions (6x driven)
Speed driven tools rpm: 4000
Main spindle
Max Speed spindle rpm: 3.250
Drive power spindle kW: 33/22 (40%/100% DC)
Spindle bore mm: 102,5
Spindle nose: Flat flange (220h5)
Maximun torque Nm: 420 (100% DC)
Tailstock
Tailstock travel mm: 850
Tailstock cone: MK5
Length x width x height, mm: 5300x2230x2010
Weight kg: 8100

Accessories/options:

Foot switch for chuck open/close
Driven tool holders
Static tool holders
Swarf conveyor
Documentations
