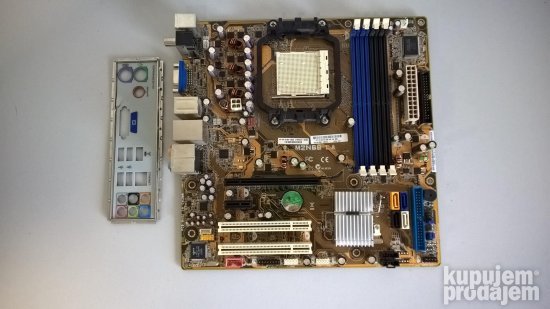

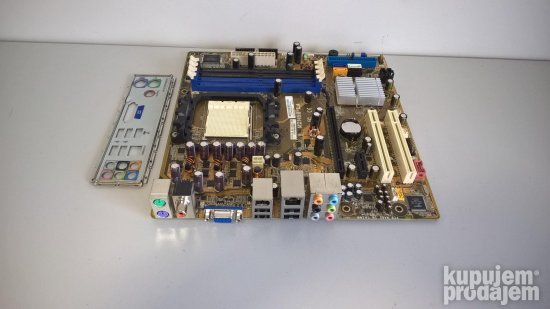

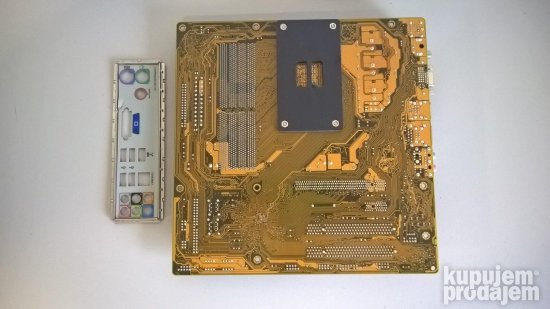

A36. Asus M2N68-LA Soket AM2

Na prodaju ispravna i testirana maticna ploca Asus M2N68-LA soket AM2.


Specifikacija:


Motherboard description

    Manufacturer's motherboard name: Asus M2N68-LA
    HP/Compaq name: Narra2-GL8E

Form Factor

    Micro-ATX: 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)

Chipset

    NVIDIA GeForce 6150SE nForce 430

Front-side bus speed

    2000MT/s (2.0 GT/s)

Processor upgrade information
Socket type: AM2
Motherboard supports the following processor upgrades:

    Athlon 64 X2 with Dual Core technology up to 5600+ (up to 89 watt)
    Athlon 64 less than 4000+
    Sempron less than 3800+

Memory upgrade information

    Dual channel memory architecture
    Four 240-pin DDR2 DIMM sockets
    Supported DIMM types:
        PC2-4200 (533 MHz)
        PC2-5300 (667 MHz)
        PC2-6400 (800 MHz)
    Non-ECC memory only, unbuffered
    supports 2GB DDR2 DIMMs
    Supports up to 8 GB on 64 bit PCs
    Supports up to 4 GB* on 32 bit PCs
        32 bit PCs cannot address a full 4.0 GB of memory.

Video
Integrated graphics using nVidia GeForce 6150SE
*Integrated video is not available if a graphics card is installed.

    Integrated graphics using nVidia GeForce 6150SE
    Up to 256MB (with 512MB or more PC memory)
    Also supports PCI Express x16 graphics cards*

Audio
Integrated Realtek ALC888S Audio
Network
LAN: 10-Base-T

    Interface: Integrated into motherboard
    Technology: Realtek RTL8201N
    Data transfer speeds: up to 10/100Mb/s
    Transmission standards:10-Base-T Ethernet

Expansion Slots

    One PCI Express x16
    One PCI Express x1
    Two PCI

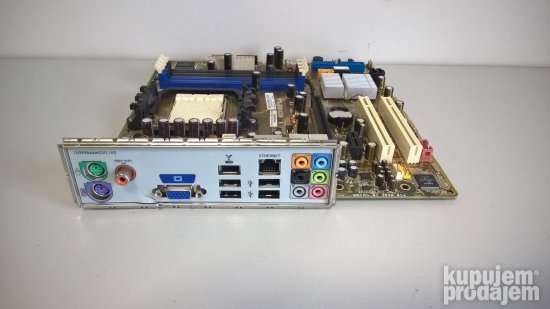

I/O Ports
Back I/O ports
Internal Connectors

    One 24-pin ATX power connector
    One 4-pin ATX power connector
    One PATA connector
    Four SATA connectors
    One floppy drive connector
    Two 12v fan connectors for CPU fan and PC fan
    One 9-pin header for power button, reset button, power LED, and HDD LED
    One SPDIF digital audio output header
    One front line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)
    One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)
    Four USB headers supporting 6 additional USB 2.0 ports or devices
    One 1394a header
    One Intel high-definition Audio/Modem Link (not used by HP)
    One jumper for resetting BIOS settings
    One jumper to disable BIOS password checking
