Hewlett Packard HP 10529A Logic Comparator

Hewlett Packard HP 10529A Logic Comparator iz 1973. godine,
svojevremeno uz odgovarajuće kartice (nisu predmet ove prodaje) korišćen za ispitivanje čipova u kalkulatorima,
opis sa net-a :
'The HP 10529A Logic Comparator clips onto powered TTL or DTL ICs and detects functional failures by comparing the in-circuit test IC with a known good reference IC inserted in the Comparator. Outputs of the particular IC to be tested are selected via 16 miniature switches which tell the Comparator which pins of the reference IC are inputs and which are outputs. Any logic state difference between the test IC and reference IC is identified to the specific pin(s) on 14- or 16-pin dual in-line packages on the Comparator's display. A lighted LED corresponds to a logic difference. Intermittent errors as short as 300 nanoseconds (using the socket board) are detected, and the error indication on the Comparator's display is stretched for a visual indication. A failure on an input pin, such as an internal short, will appear as a failure on the IC driving the failed IC; thus a failure indication actually pinpoints a malfunctioning node. A test board is supplied to exercise all of the circuitry, test leads, and display elements to verify proper operation. Matching Instruments: HP 545A Logic Probe, HP 435A or HP 10526T Logic Pulser, HP 548A or HP 10528A Logic Clip, HP 548A Current Tracer',

dobro očuvan i NETESTIRAN jer nemam odgovarajuće kartice, bez garancije i reklamacije,

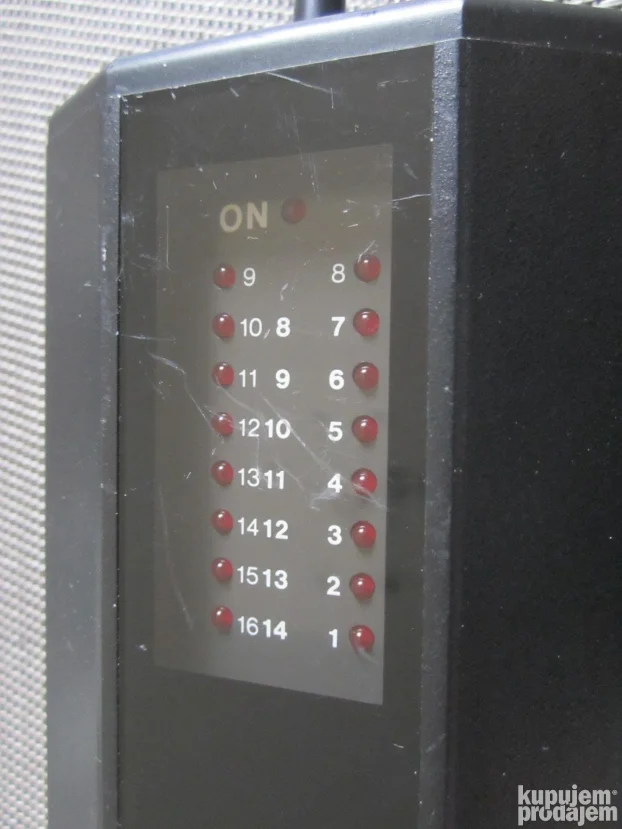

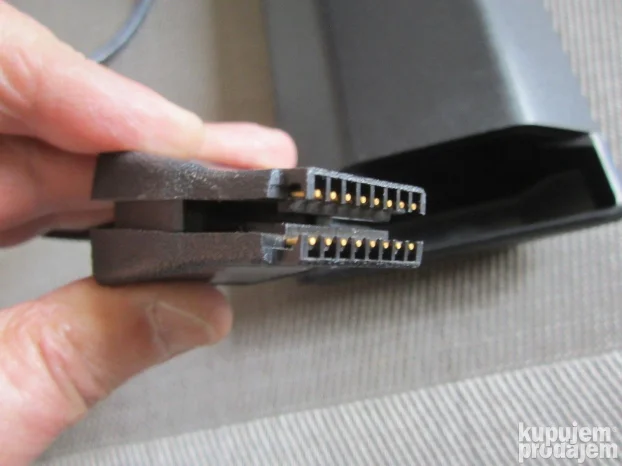

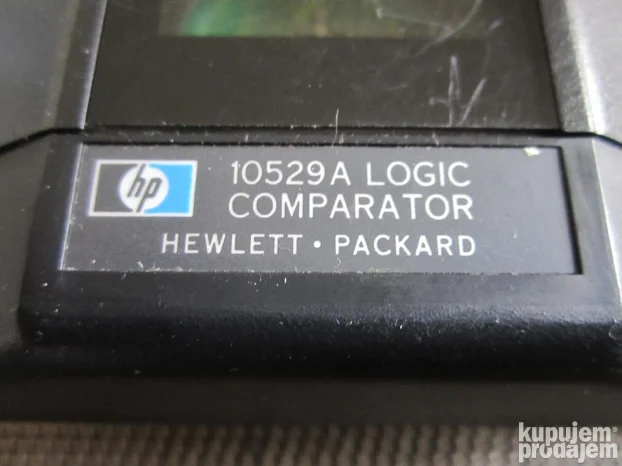

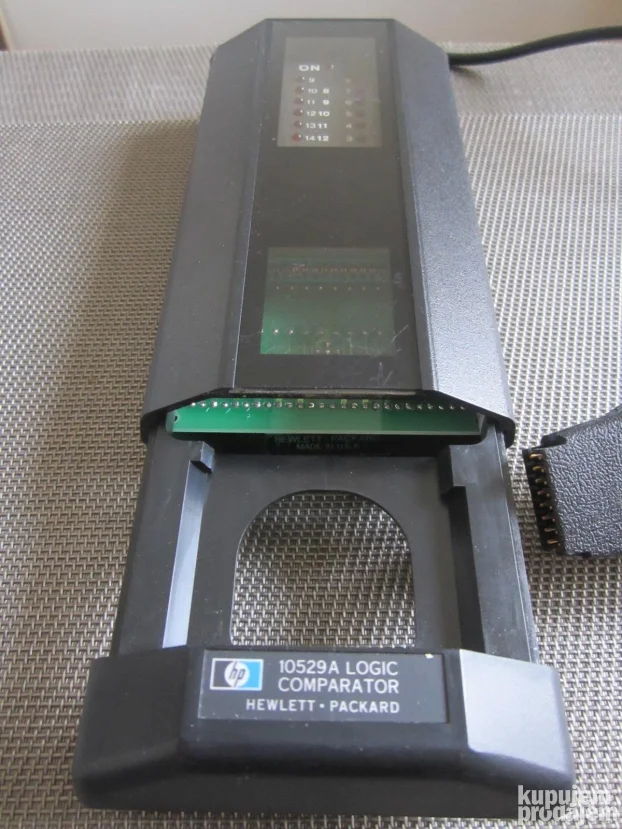

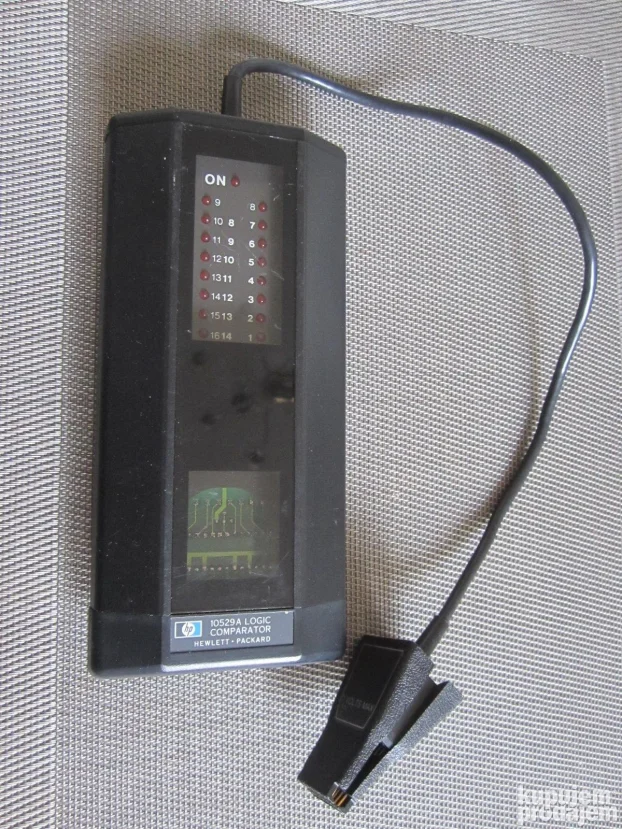

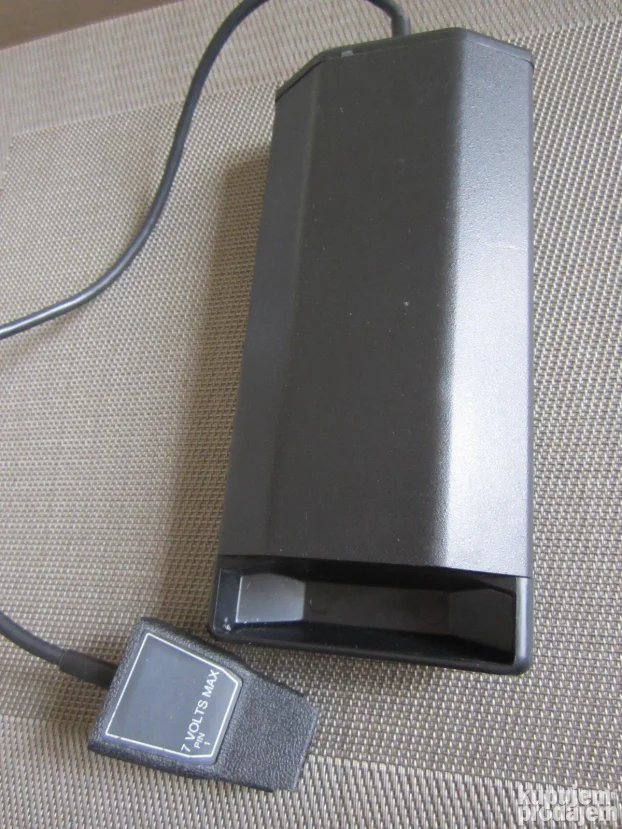

stanje kao na slikama . . .

Detaljno uputstvo možete pogledati na net-u :
https: //www. arcade-museum. com/manuals-test-equipment/10529A-Year1973-Manual. pdf

Lično preuzimanje u BG na Senjaku.
Slanje PE-om o trošku kupca !
