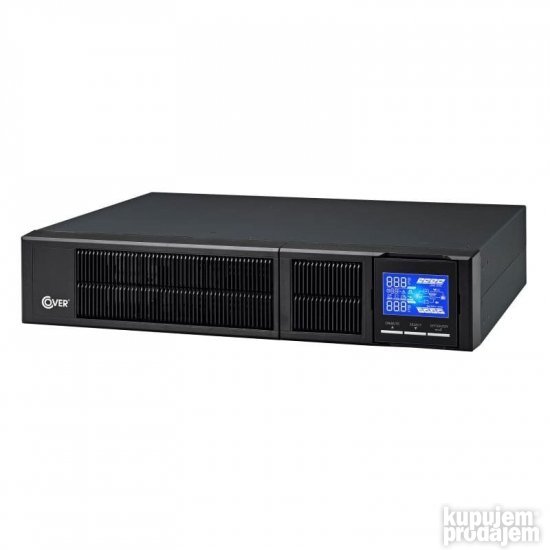

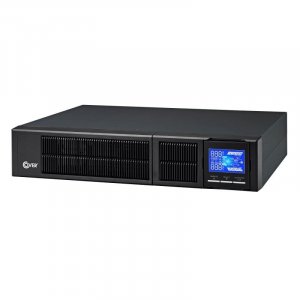

UPS Comex Cover Core 1kVA

Model

CORE 1K (Rack/Tower)



Power

1000 VA
900 W



No. Of phases IN : OUT

1:1



Input



Nominal voltage

208 / 220 / 230 / 240 Vac

Voltage range

30% ÷ +30% @ 100% ≥ obc. > 80%
-40% ÷ +30% @ 80% ≥ obc. > 70%
-48% ÷ +30% @ 70% ≥ obc. > 60%
-52% ÷ +30% @ 70% ≥ obc. > 0%

Frequency

50 / 60 Hz

Frequency range

-20% ÷ +20%

THDi

<3%

Input power factor

≥0,99



Output



Nominal voltage

208 / 220 / 230 / 240 Vac

Output power factor

0,9

Voltage regulation static/dynamic

±1% / ±3%

Frequency

50 / 60 ± 0,05 Hz

Overload capacity inverter

110% - no limit, 130% - 5 min, 140% - 30 sec. , >140% - 1,5 sec

Efficiency on-line mode

>92%

Efficiency eco mode

99%

Controlled socket groups

1 x 4 pcs.



Type and number of sockets

IEC320-C13 x8



Creast factor

3:1



Batteries



Amount of internal batteries

3 x 7/9Ah



Cold start

Yes

Connector for external batteries

Yes

Charging time

4 hours up to 90% of capacity



Dimensions and weight



Dimensions and weight of UPS (W x D x H)

438 x 410 x 88 (2U)



14,2 kg



Dimensions and weight of battery module (S x G x W)

438 x 410 x 88

21,3 kg



Communications



Working indicator

LCD panel + sound alarm

Communications

Standard: RS232, USB, TVSS, SNMP Slot, REPO
Optional: Karta AS-400, karta SNMP



Enviromental



Noise level

<45 dB

Operating temperature for UPS

0° C ÷ 45° C

Recommended temperature for UPS

15° C ÷ 25° C

Recommended operating temperature for UPS

-25° C ÷ 55° C

Humidity

0 ÷ 95% (without condensing)



Normy



Standards

EN 62040-2:2005, EN 62040-2:2006

Safety

IEC62040-1-1, CE, 62040-3 :2001



Options



- SNMP card
- Environmental sensor (EMD)
- maintenance bypass
- REPO

• - Additional battery module
  - Rail kits 19''
  - AS-400 (Relay Card)

> > > > > > > > > > > > > > > > > > > > > > > >     < < < < < < < < < < < < < < < < < < < < < < <
