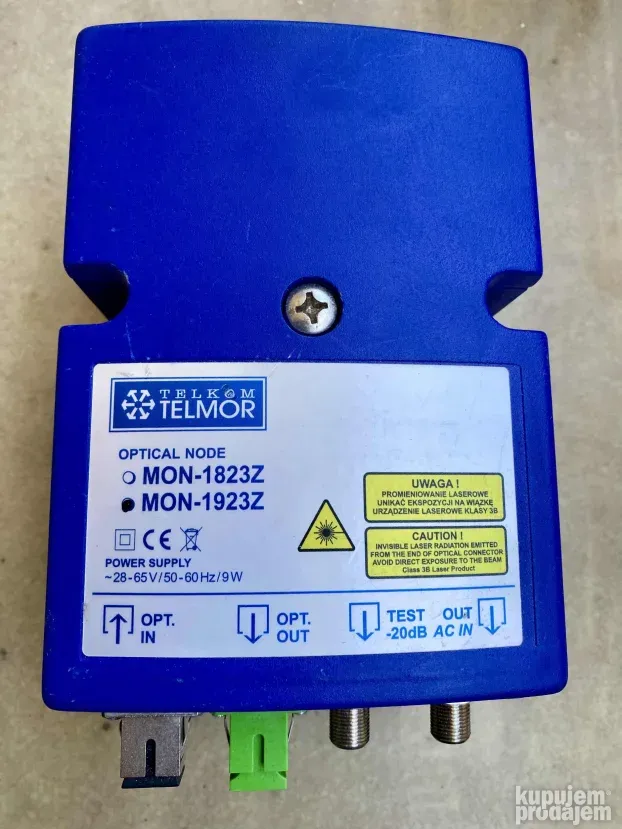

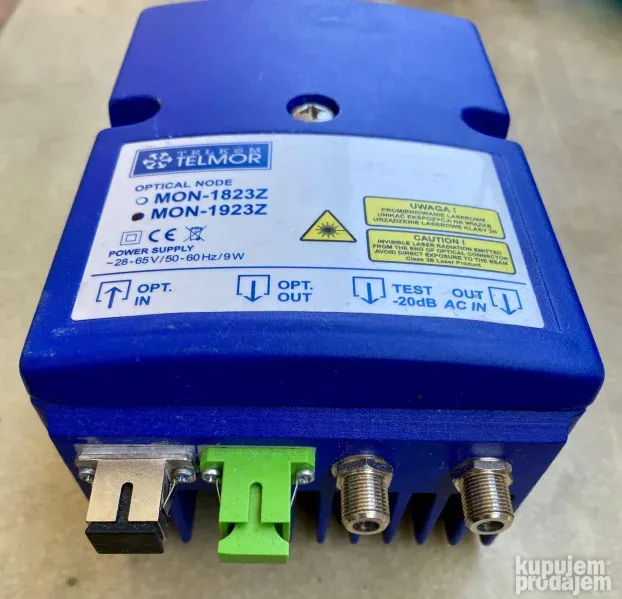

TELMOR MON-1923 MZ, Optical node, 1006MHz

Ispravan i testiran. . . . . novo. . TELMOR MON-1923 MZ, Optical node, 1006MHz, AGC, 109dBuV, 28-65 VAC, JXP-plugins MON-1x23 is a modern two-way optical node intended for work in HFC networks, which uses DOCSIS technology. The node is equipped with an automatic amplifier system - AGC. This system responds to the value of the optical power at the input of the receiver and corrects it to provide a constant previously set output signal.

The MON-1x23 can be equipped with one of the available optical reverse transmitters. Depending on individual needs, the module can be FP, DFB or CWDM laser.

Features:

Designed for HFC and FTTB networks, Frequency range 1 GHz, Simple configuration - adjustable and universal plug-in modules, Built-in AGC (Automatic Gain Control), 3-level LED indication of input optical power level, Optical transmitter is a plug-in module, Local or remote power supply , Metal, cast housing. Parameters

Frequency band 5-65/87. .1006MHz

Connectors F

Dimensions 107x155x75mm

Consumption (W) 9W

28-65 VAC design. POGLEDAJTE I OSTALE MOJE OGLASE
