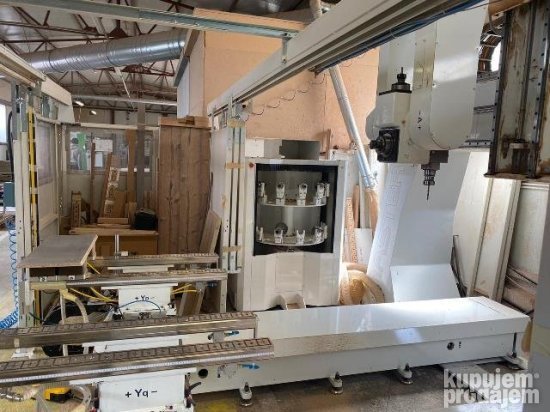

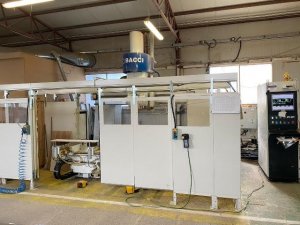

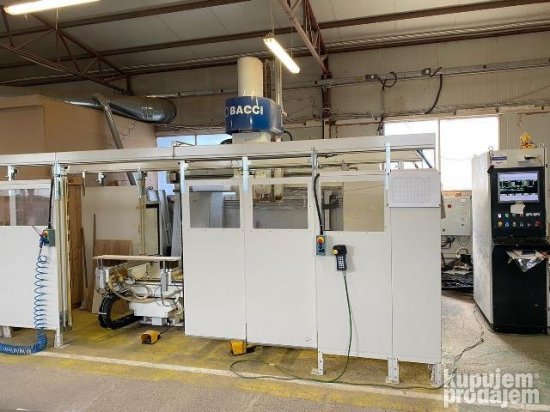

SECOND HAND 5 AXIS CNC WORKING CENTRE BACCI MOD. MASTER
n. 6 interpolated axes
Pitagora Software
CN Osai
Yaskawa drivers
n. 2 inverters

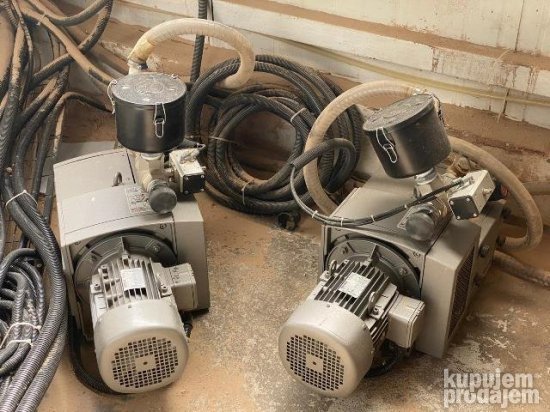

n. 2 vacuum pumps
strokes:
longitudinal X axis of the head: 3000 mm
transversal Y axis of the 2 tables: 1800 mm
vertical Z axis of the head: 750 mm
rotating A axis: Unlimited
rotating C axis: -200° - +200°
speed X, Y, Z axes: 1 m/s , A, C axes 12,000 ° /min

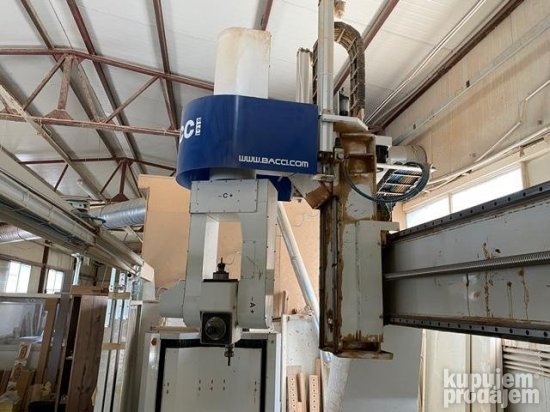

electro-spindles head type T3F
spindles power (S1): 7.5 kW
rpm: 0 – 24,000 1/min
rotation: clockwise and counter-clockwise

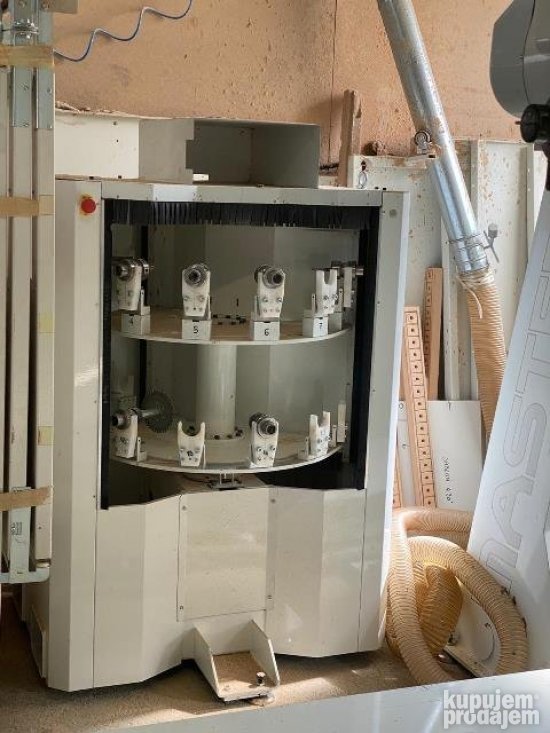

tool changer (n.16 positions)

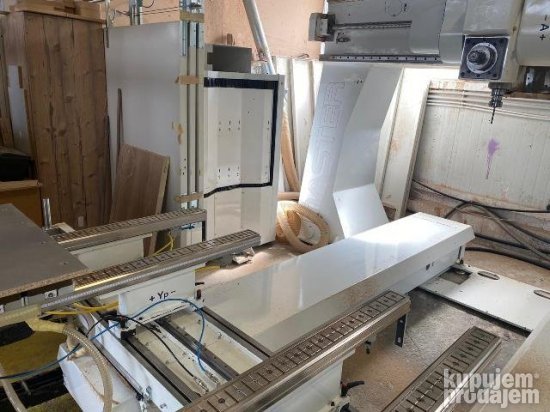

n. 2 working tables TGV
height of the work surface (from the ground): 850 mm
distance between centre of the shelves adjustable: 200 mm - 1170 mm
vacuum device: n. 4 cups 50 mm x 50 mm
n. 4 pneumatic locking cylinders (n.2 per table)
open space between the columns: 2750 mm
380 V, 50 Hz,
overall power 29 Kw
perimetral cabin (n.3 sides)
S/N 988
CE rules (year 2015)
